Direct Measuring Device for Drill Bits, 145 mm
Also called Direct measuring device

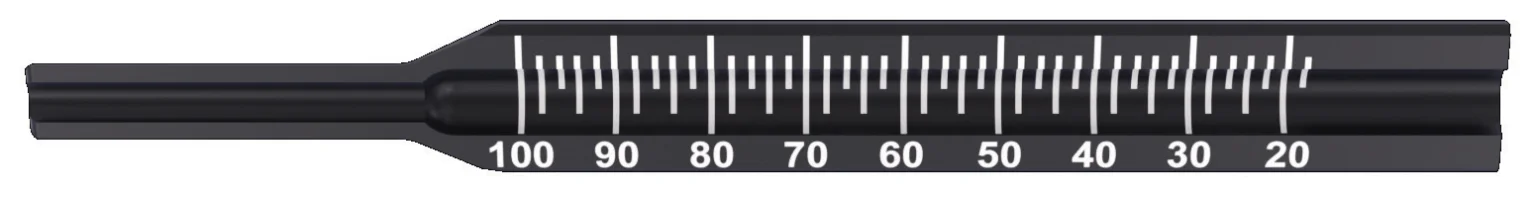

A measuring device that slides onto a 145 mm calibrated drill bit after the bit is detached from the drill.
Primary uses
What this instrument is on the table to do.
Measures distal locking screw length. After drilling through both cortices, the bit is detached, its position past the far cortex is checked on imaging, and the device is placed on the bit. The reading at the end of the bit is the screw length.
Sizes & variants
The lengths, angles and patterns it comes in.
03.010.429 Direct Measuring Device for Drill Bits, length 145 mm. Alternative: 03.019.017 Depth Gauge for Locking Screws, range to 100 mm.
