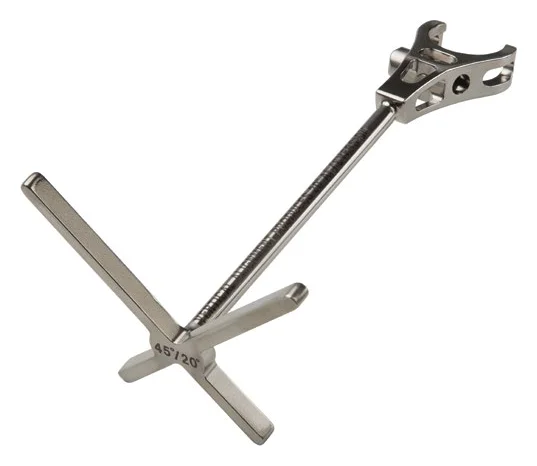

Supine Alignment Guide
An optional guide that slides onto the cup impactor and turns around its spindle. Two crossbars give a visual reference for cup angle.
Primary uses
What this instrument is on the table to do.
Cup insertion: the plane of the two crossbars is set parallel to the front plane of the pelvis (about 20 degrees anteversion) and the side-specific crossbar is lined up with the midline of the body (about 45 degrees inclination).
Sizes & variants
The lengths, angles and patterns it comes in.
Supine Alignment Guide 1440-1380 (optional).
